The 2200 Series builds on a proven concept providing reliability, efficiency, and ease of use with thousands of units installed in demanding 24/7 environments. The 2200 Series takes print and apply to the next stage of evolution, giving you a wide range of interchangeable applicators, optimized operational intervention, and unparalleled application rate.
Why choose the Markem Imaje 2200 Series?
- Ability to print and apply at rates up to 125 packs per minute regardless of the data complexity or content.
- A simple media path allows operators to reload labels and ribbon rolls in less than 40 seconds.
- 560 m ribbon and label rolls compared with the market standard of 450 m to reduce the line stoppages by 25%.
- Compliant ANSI grade A/B codes even at the highest application speed.
- CoLOS software solutions ensure product data integrity, central data management and easy connection to the existing enterprise database.
- Designed to be over 95% recyclable.
The Markem Imaje 2200 Series offers unmatched reliability, including:
- Durable and rugged industrial design constructed around a central solid 38 mm thick backbone.
- High-performance non-stick label pad and contact parts for easy to clean uncomplicated operation.
High-Performance Printing
- Ability to print and apply at rates up to 125 packs per minute regardless of the data complexity or content.
- Dual RISC processors, supported by a dedicated ultra-fast co-processor, deliver efficient performance.
- Consistent label application of ± 0.25 mm via an optimized label path, automatic label tension, and an integrated pad label sensor.
- Markem-Imaje labels and ribbons guarantee print quality and long printhead life.
Operation optimization
- A simple media path allows operators to reload labels and ribbon rolls in less than 40 seconds.
- 660 m ribbon and label rolls compared with the market standard of 450 m to reduce the line stoppages by 45%.
- Synchronized label and ribbon change.
- «No tools» concept allows printhead and roller exchanging in less than 60 seconds.
- CoLOS Terminal®, the new colour touch screen, enables easy selection of labels to be printed and powerful data management through an intuitive user interface.
Traceability
- Compliant ANSI grade A/B codes even at the highest application speed.
- Optional barcode scanner ensures that 100% of cases leave the factory with a readable barcode.
- Supports high-speed real-time data generation, including linear and 2D barcodes, graphics or serialization.
- CoLOS software solutions ensure product data integrity, central data management and easy connection to the existing enterprise database.
Eco-initiatives
- Designed to be over 95% recyclable.
- Compatible with recyclable liners.
- Power consumption below 35 watts in standby mode and 135 watts at maximum throughput.
Boost Your Uptime
Add up to 4 days of production per year
- Quickly change materials and consumables in less than 40 seconds.
- Synchronized media changes minimize the frequency of changes and maximize uptime.
- Fastest speeds, >140 ppm side apply>90 ppm front of the pack.
- Consistent label management via optimized label path, automatic label tension, and integrated label control, prevents missing labels, jams, and mess.
Maintenance-free
- Longer media lengths for extended operation, 560/660 or 800m.
- No tools or maintenance items.

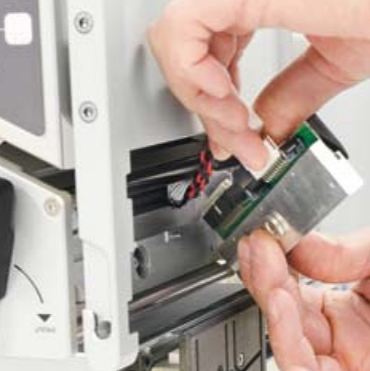

- Change print head and roller in less than 60 seconds.
- Markem-Imaje’s unique, maintenance-free print unit with up to 24-month service intervals.
Operator friendly, clean operation

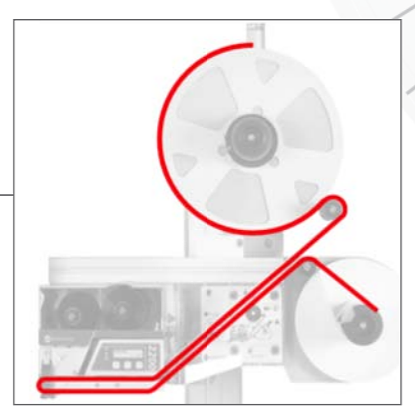

- An easy consumable media path allows operators to load labels and ribbon without error.
- No operator adjustments required.
- Competent operation with less than 5 minutes of training.

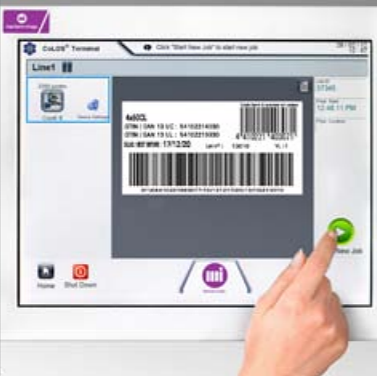

Color User Interface
- Advanced UI for local interaction or remote secure database function.
- Easy three-button operation
- Store all data with CoLOS® software
- Operate up to 4 machines

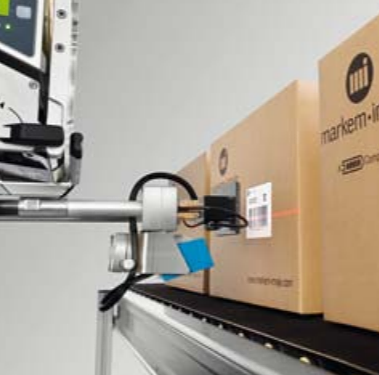

Retail compliance
- GS1 Compliant, ANSI grade A/B codes.
- An integrated barcode scanner ensures that 100% of cases leave the factory with a readable barcode even at the highest application speed.
Investment protection
- Wide range of applicators best suited for each application minimizing the need for line changes and expensive modifications.
- Easy to change to different applicator or printhead or printhead size in less than 15 minutes.
Environmentally friendly
- Power consumption below 35 watts in standby and 135 watts at maximum throughput.
- 95% recyclable parts.

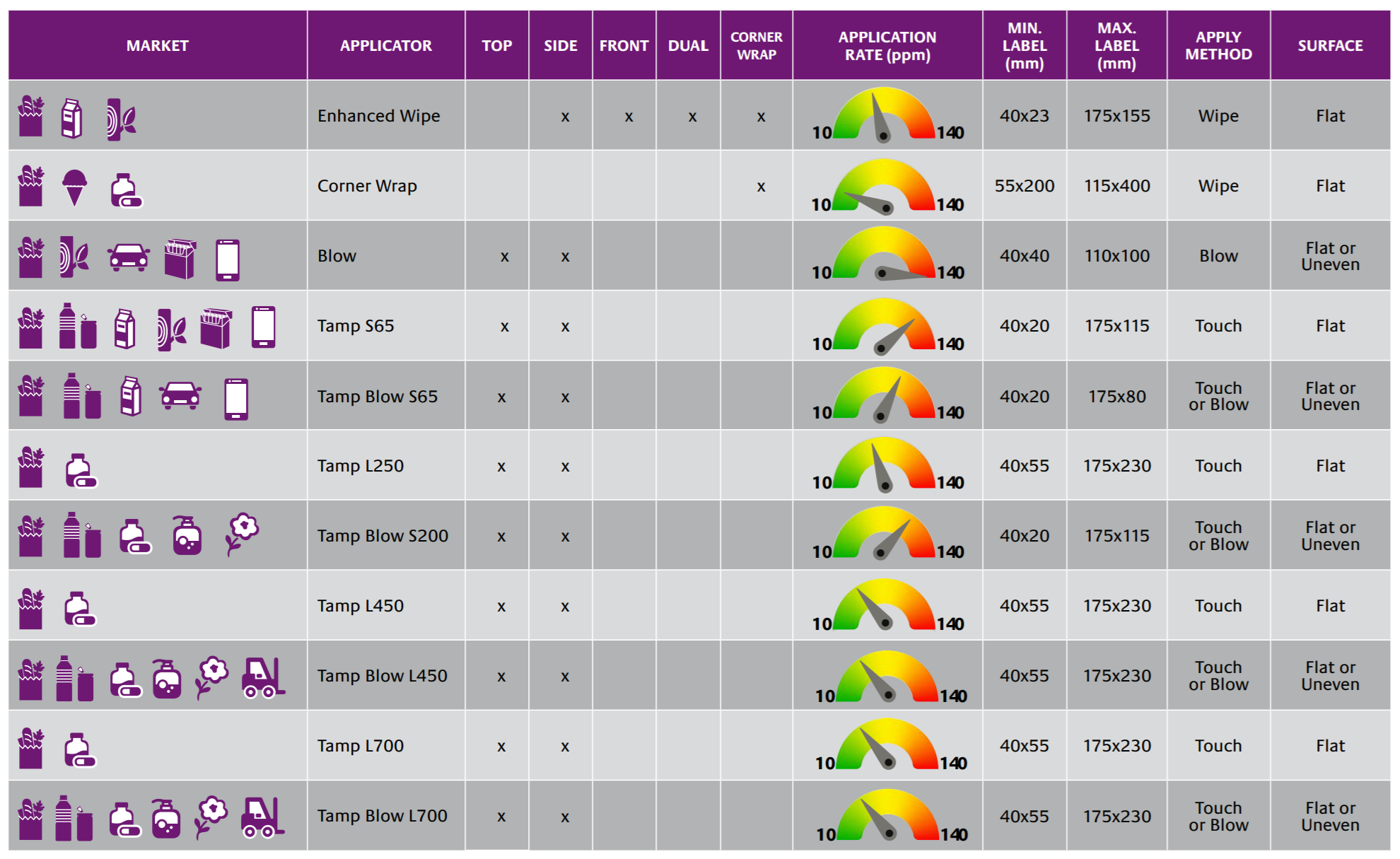

Solutions Guide
To see the full list of solutions in detail, open the full solutions guide here!
